Locate photo interrupter on Samsung CLX-3170, CLX-3175 series


Here are the three places where you can find the photo interrupter 0604-001095 (or 0604-001415) in Samsung CLX-3170 and CLX-3175 printers:


Below the cover middle:

the cover middle

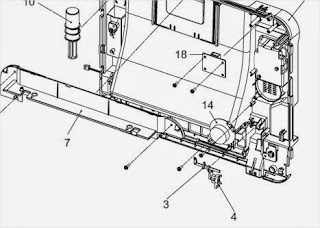

 Under the cover: the photo interrupter is the number 4

In the fuser:
The photo interrupter is the number 21:

In the scan unit:
The photo interrupter is at number 2
